Make Solar Water Heating Systems Safer and More Efficient – The Smart Choice of BX03-32/BX03-33 DC Protection Boxes

Why Solar Water Heating Systems Need Professional Protection?

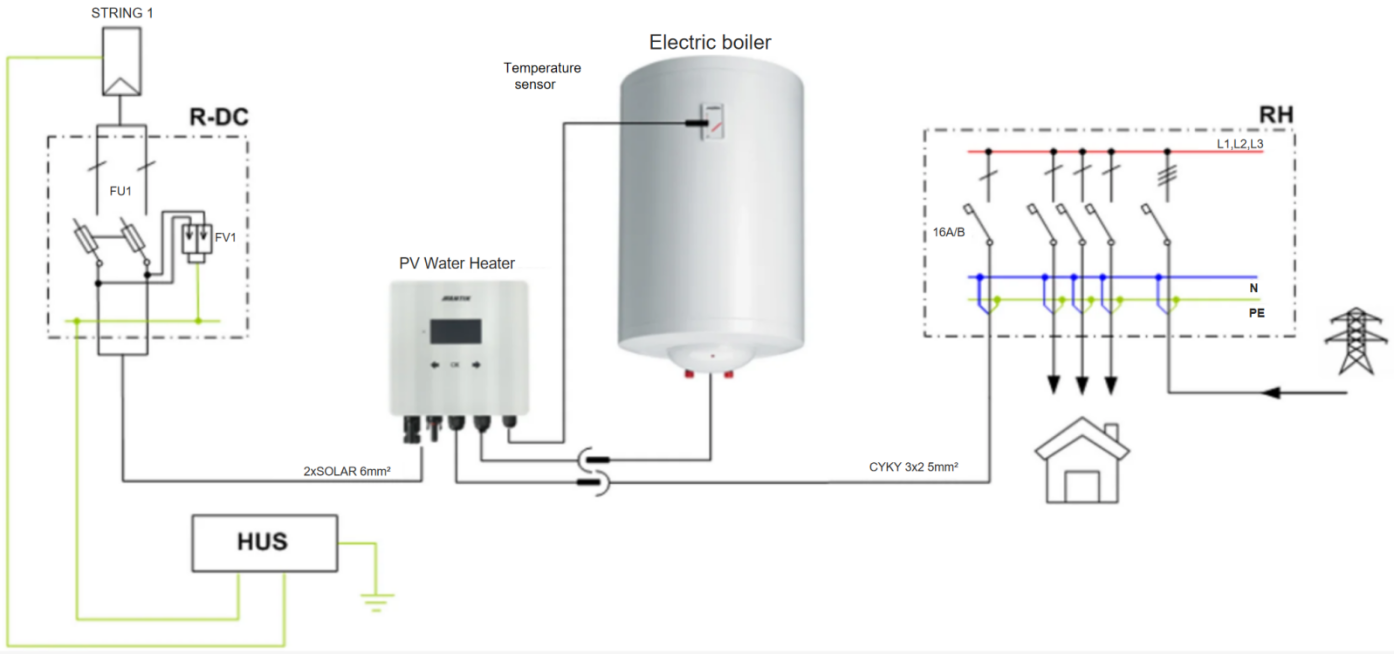

Solar water heating systems, with their green and energy-saving advantages, are becoming popular in both residential and commercial sectors. However, photovoltaic direct drive power systems face three major challenges:
Ⅰ  Voltage Fluctuations – Current fluctuations due to cloudy or rainy weather can damage sensitive heating elements.
Ⅱ  Lightning Strikes and Surge Threats – Exposure to thunderstorms or power surges can instantly destroy key components of the system.
Ⅲ  High Maintenance Costs – Traditional fuse protection systems require frequent replacements, leading to higher operating and maintenance costs.

BX03-32/BX03-33 DC Protection Boxes: The Intelligent Solution for Solar Water Heating Systems
Our BX03-32 and BX03-33 protection boxes are designed to provide the most advanced solutions for photovoltaic water heating systems, combining powerful protection features with intelligent design to ensure your system is both safe and efficient.

Custom Protection for Different System Scales

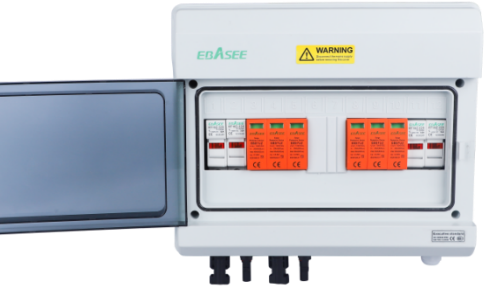

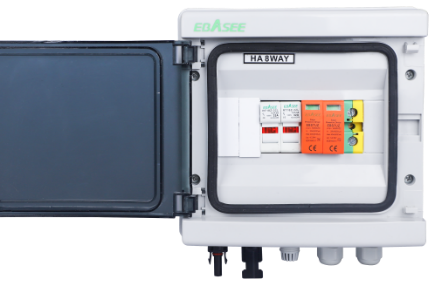

                        BX03-33                                                                                                    BX03-32

Highlight Features:

• T1+T2 Dual Surge Protection: Capable of withstanding both direct and induced lightning strikes, with residual voltage lower than 1.5kV, ensuring the system is protected from surges.
• 3P SPD Three-Pole Protection (BX03-33): Protects the positive, negative, and ground lines simultaneously, eliminating leakage and grounding risks.

Two Major Benefits

Safety and Compliance, Globally Compatible
Certified to international standards such as IEC 61643-31 and EN 50539-11, suitable for electricity grids in Europe, North America, Asia and Africa.

50% Reduction in Operation and Maintenance Costs
Compared to traditional fuse-based solutions, the reusable MCB design and modular SPD replacement achieve a significant reduction in long-term maintenance expenses through minimized component replacement frequency and streamlined operational workflows.

Customizable as Needed
✔️ Standardized BX03-32/BX03-33 solutions, with support for customized adaptations.

Comparison of the Advantages and Disadvantages of Using FUSE or Using MCB

With FUSE (Suitable for Areas with Stable Current and Voltage)

• Advantages:
  Cost Savings: Lower initial cost without a circuit breaker system, reducing component procurement expenses.
  Simple and Reliable: Ideal for areas with stable and minimal voltage fluctuations, making the system more stable.
• Easy replacement: Quick replacement, no need to repeat wiring
• Better performance:Higher short-circuit breaking capacity and faster instantaneous short-circuit fusing speed
• Disadvantages:
  No Quick Recovery Mechanism: If the system faces sudden surges or voltage fluctuations, it cannot quickly recover and requires fuse replacement.

With MCB (Suitable for Areas with Unstable Voltage)

• Advantages:
  Quick Recovery: The MCB can quickly disconnect and recover once the issue is resolved.
  Reduced Long-Term Maintenance Costs: The protection design and reset functionality of the MCB reduces the frequency of fuse replacement, significantly lowering maintenance costs.
  Better Protection: In areas with significant voltage fluctuations, lightning strikes, or surges, the MCB provides additional protection, ensuring the system runs efficiently over the long term.
• Has Overload Protection Capability:Offers a certain level of operating short-circuit protection and can be recoverable under overload conditions and specified short-circuit operating conditions.
• Disadvantages:
  Higher Initial Cost: MCB adds to the initial procurement cost, making it suitable for projects where cost sensitivity is less of a concern.

Who Needs BX03-32/BX03-33?

• Solar Water Heater Manufacturers: Provide professional-grade protection for products, improving product quality and market competitiveness.
• New Energy Contractors: Reduce service failure rates by 30%, enhancing customer service competitiveness.
• Photovoltaic Distribution Box Manufacturers: Simplify integration with a mature solution.If you need to
• Apply for sample testing
• Arrange technical communication & selection support
• Develop promotion strategy & market cooperation plan

Welcome to contact us at www.ebasee.com / [email protected]
