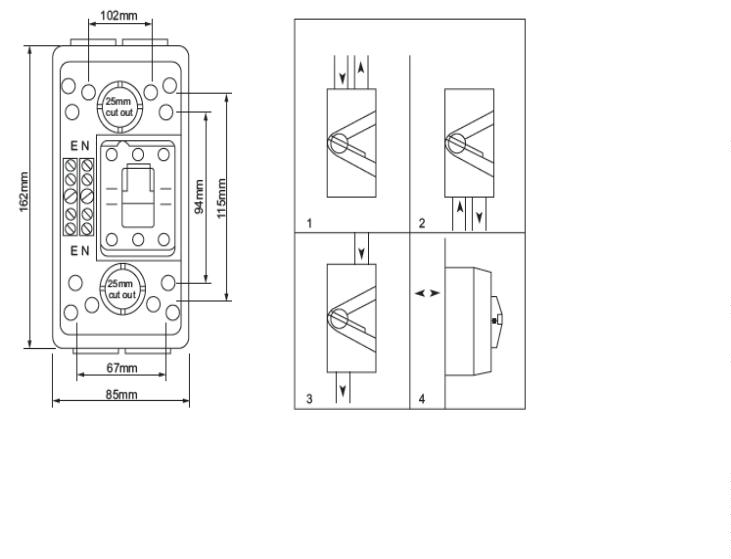

Cables looped in and out from overhead
In and out from underground
In and out stralght through the switch
two 25mm rear knockouts are moulded in the base for surface
mounting with concealed wiring.
Switch fuse isolator, serving mechanical equipment, weather proof

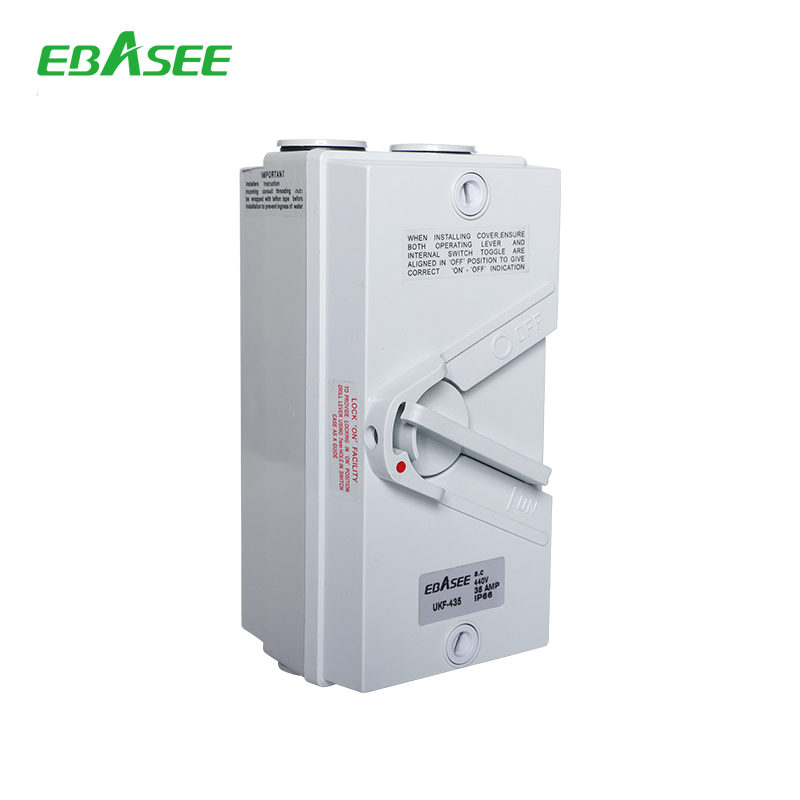

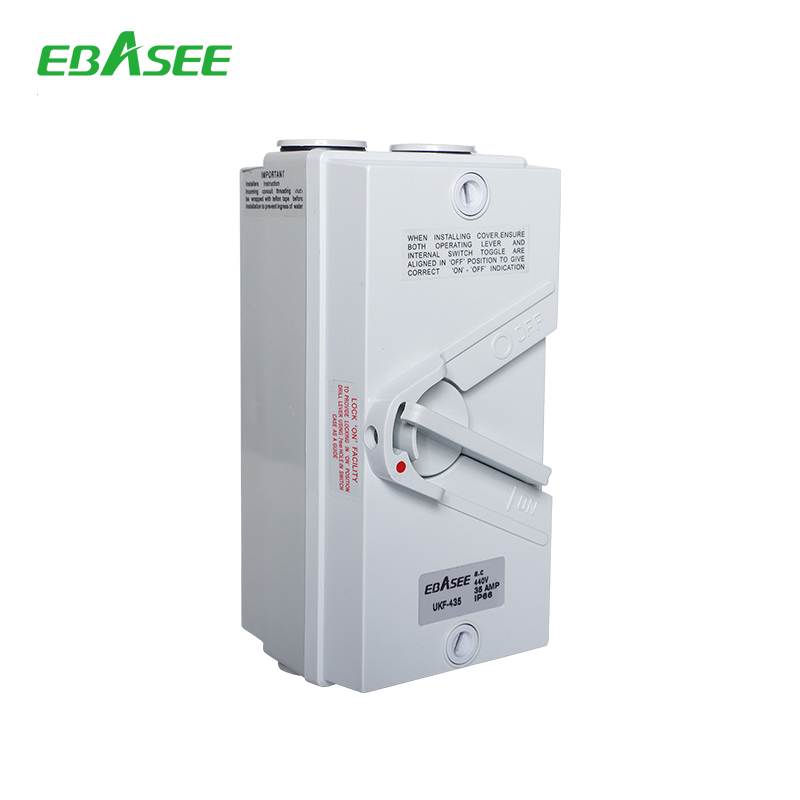

UKF IP66 35A 440V Surface Mount Double Pole Isolating Switch
| Model | Size (mm) | Rated Voltage (V) | Rated Current (A) |
| UKF-1 20 | 166×83×86 | 500 | 20 |
| UKF-1 25 | 166×83×86 | 250 | 25 |
| UKF-1 35 | 166×83×86 | 250 | 35 |
| UKF-1 63 | 166×83×86 | 250 | 63 |
| UKF-2 20 | 166×83×86 | 440 | 20 |
| UKF-2 25 | 166×83×86 | 440 | 25 |
| UKF-2 35 | 166×83×86 | 440 | 35 |
| UKF-2 63 | 166×83×86 | 400 | 63 |
| UKF-3 20 | 166×83×86 | 440 | 20 |
| UKF-3 25 | 166×83×86 | 440 | 25 |
| UKF-3 35 | 166×83×86 | 440 | 35 |
| UKF-3 63 | 166×83×86 | 440 | 63 |
| UKF-4 20 | 166×83×86 | 440 | 20 |
| UKF-4 25 | 166×83×86 | 440 | 25 |
| UKF-4 35 | 166×83×86 | 440 | 35 |
| UKF-4 63 | 166×83×86 | 440 | 63 |
