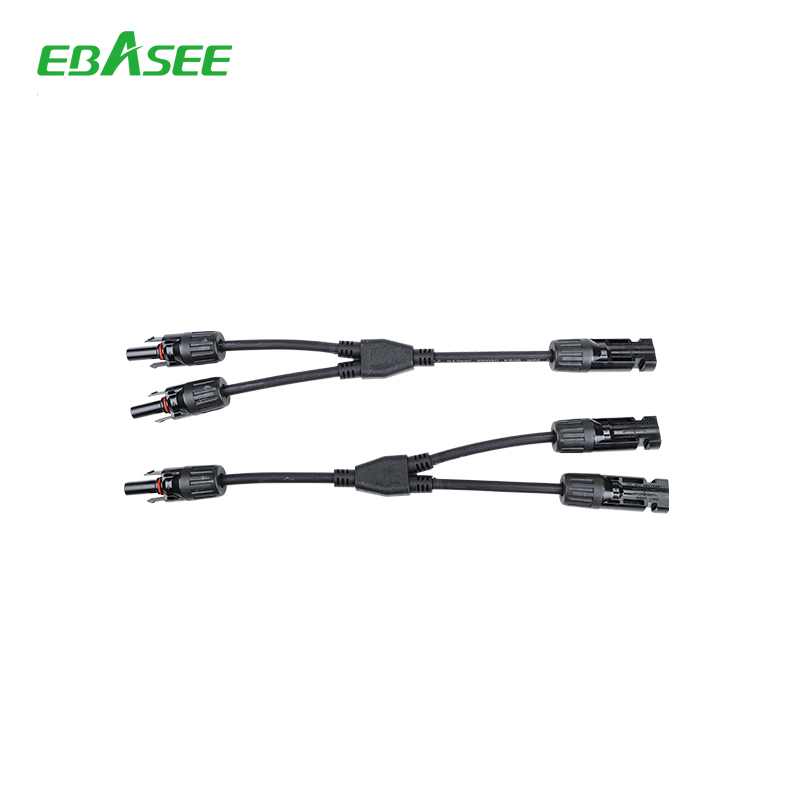

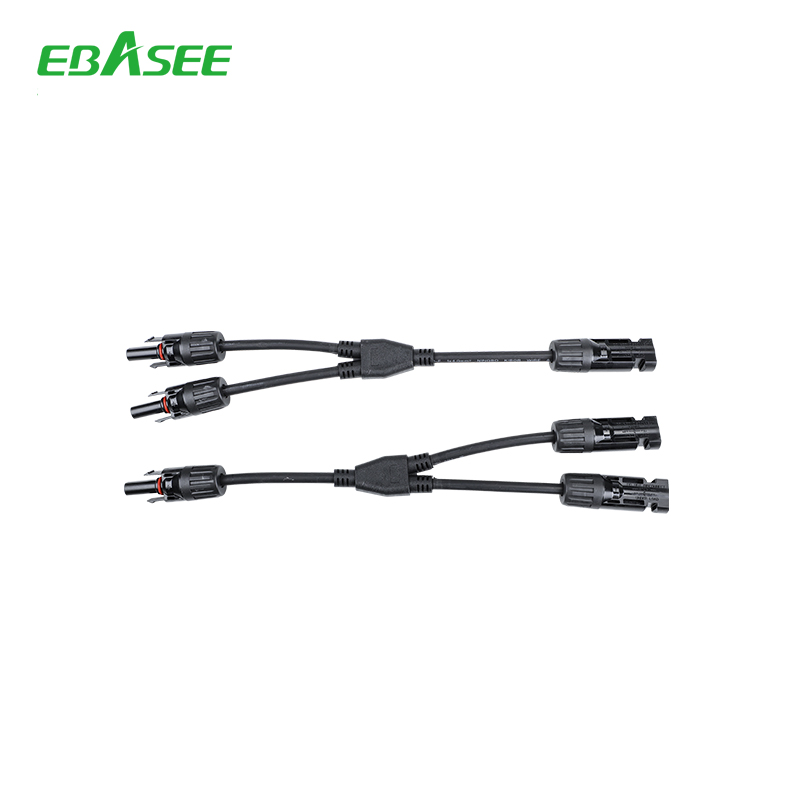

Y Type PV Photovoltaic DC connector

General

Solar connector is typically made from copper, with a tin plating to enhance their conductivity and corrosion resistance, it is specialized electrical connectors designed specifically for solar panels, inverters, DC combiner boxes, and other components in a photovoltaic (PV) system. Connectors have become the industry standard due to their reliability, weather resistance, compatibility, cost-effectiveness, and easy installation and maintenance.

Specifications

Connector system Φ4mm
Rated voltage 1000V DC
Rated current 30A
Test voltage 6kV(50Hz, 1min)
Ambient temperature range -40℃…+90℃(IEC)   -40℃…+75℃(UL)
Upper limiting temperature +105℃(IEC)
Degree of protection, mated IP67
Unmated IP2X
Comtact resistance of plug connectors 0.5mΩ
Safety class
Contact material Messing, verzinnt    Copper Alloy, tin plated
Insulation material PC/PA
Locking system Snap-in
Flame class UL-90-V0
Sait mist spray test, degree of severity 5 IEC60068-2-52

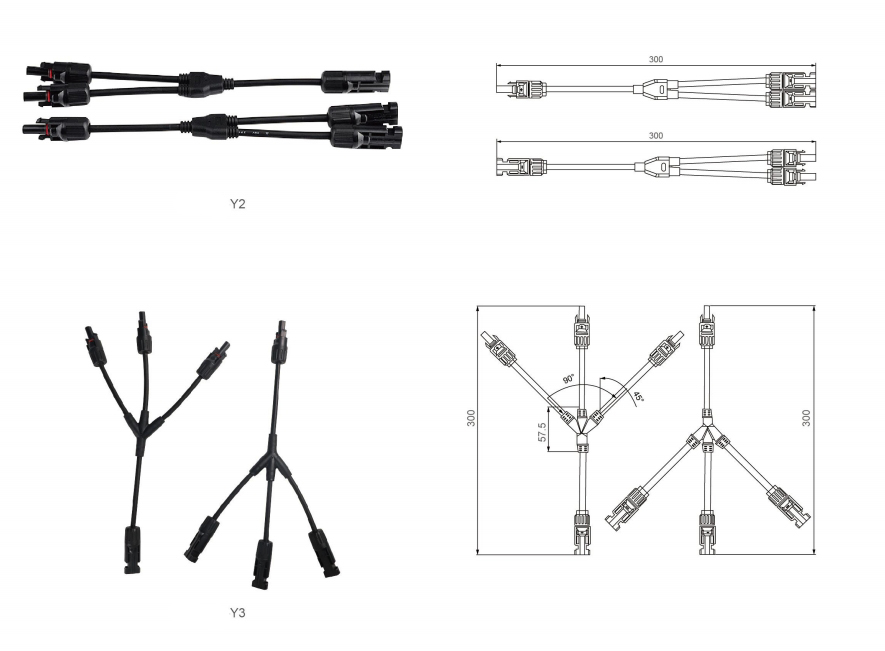

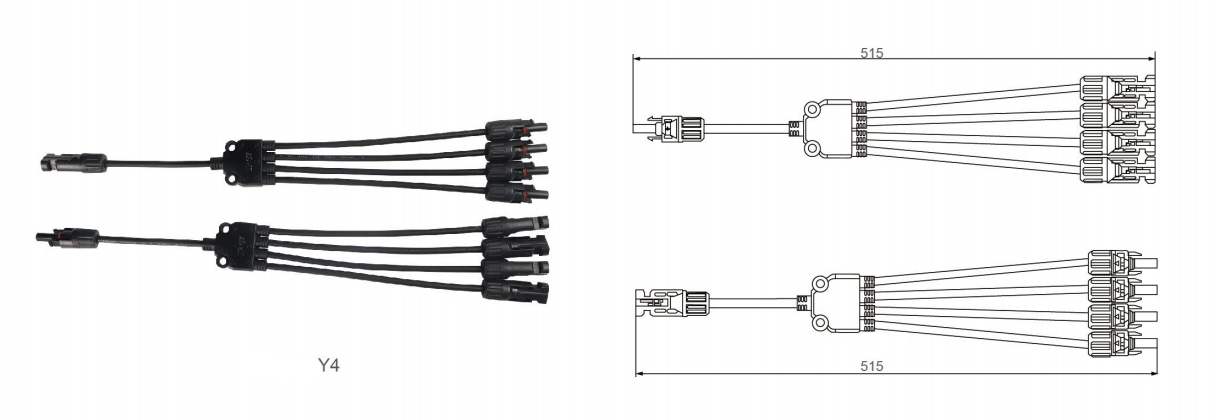

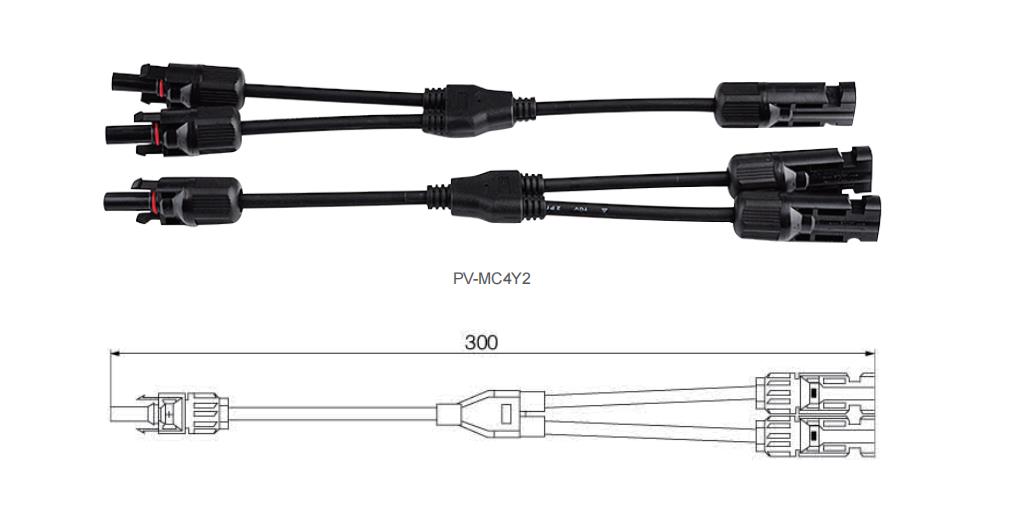

Dimensions
