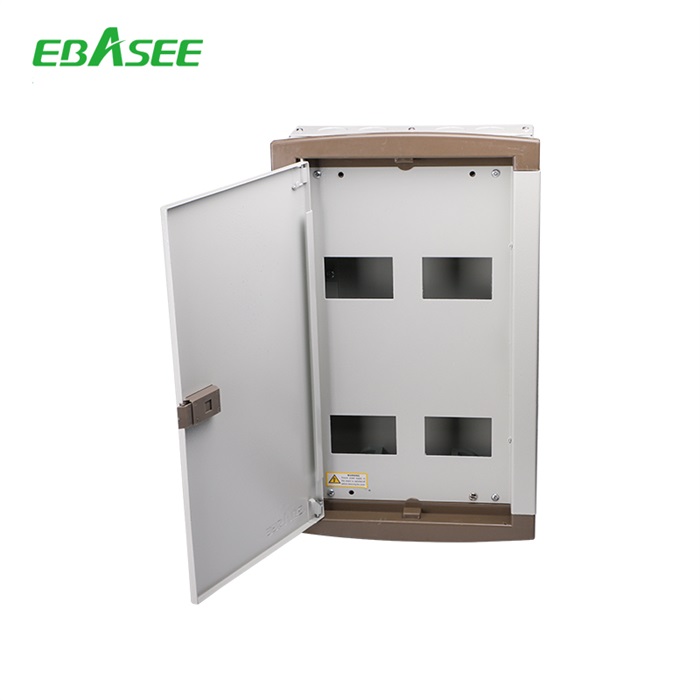

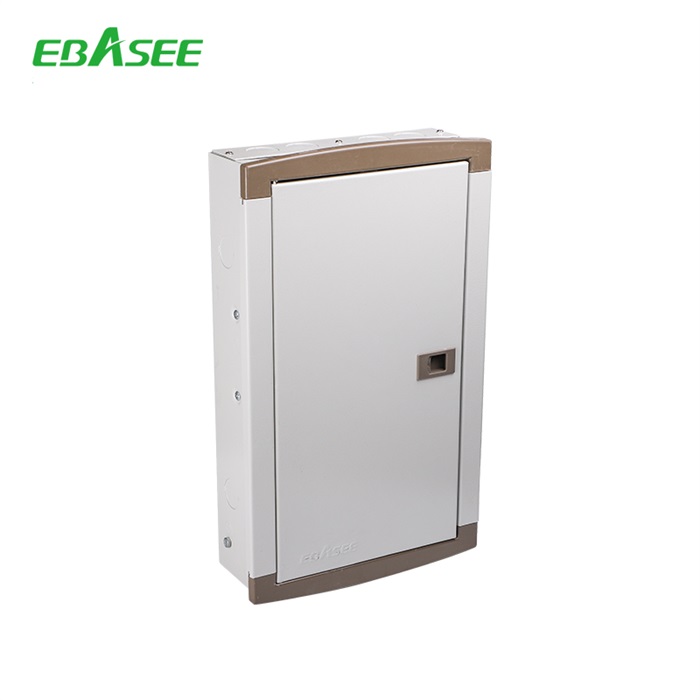

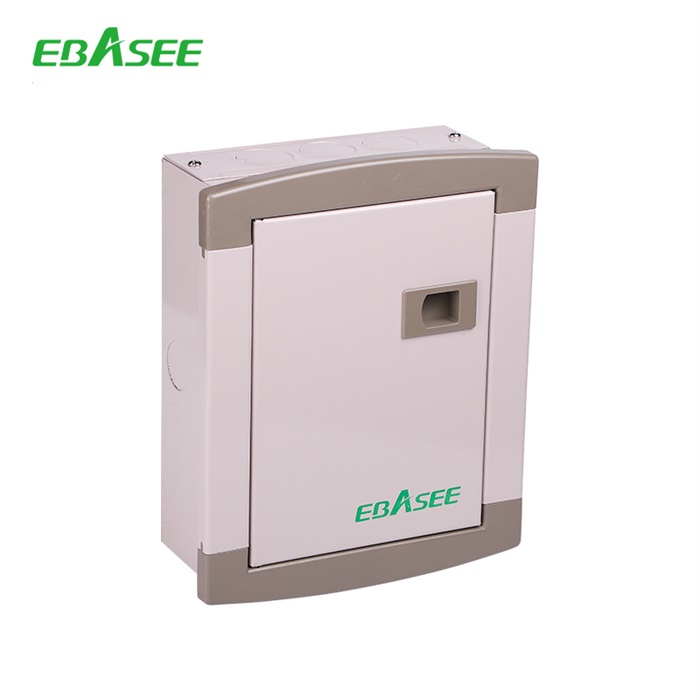

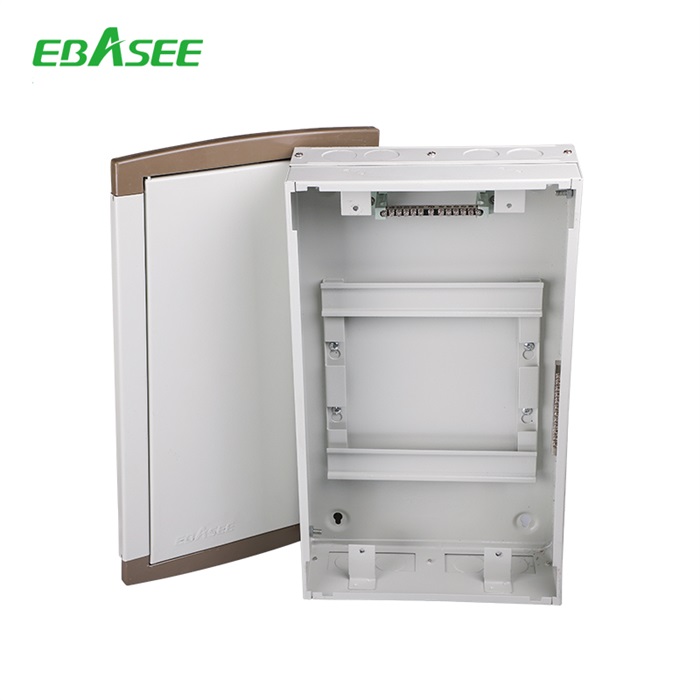

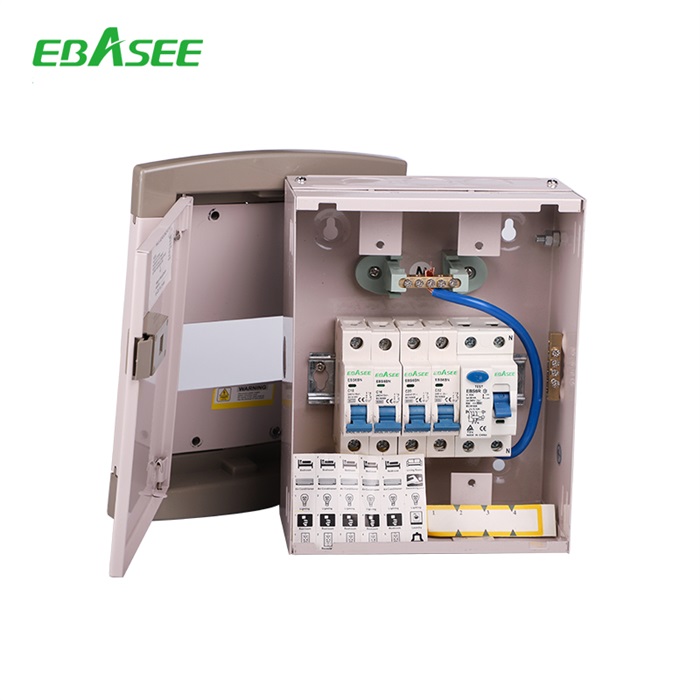

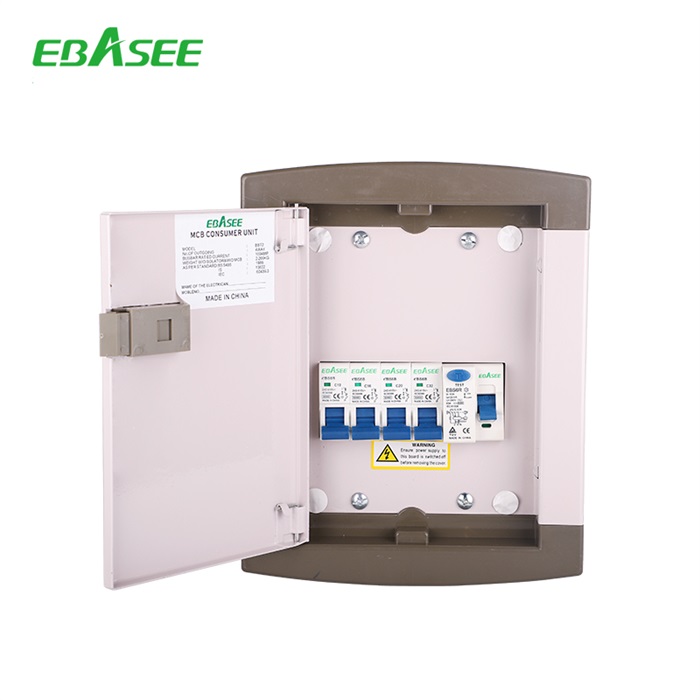

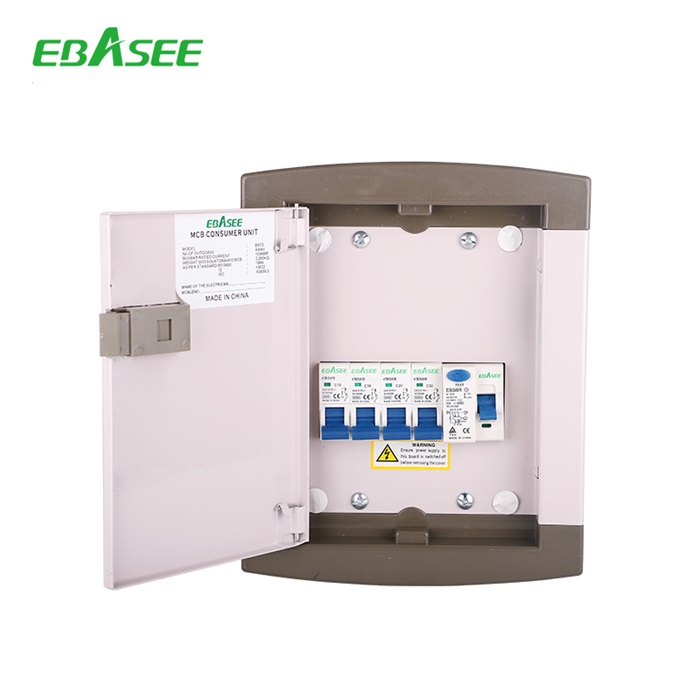

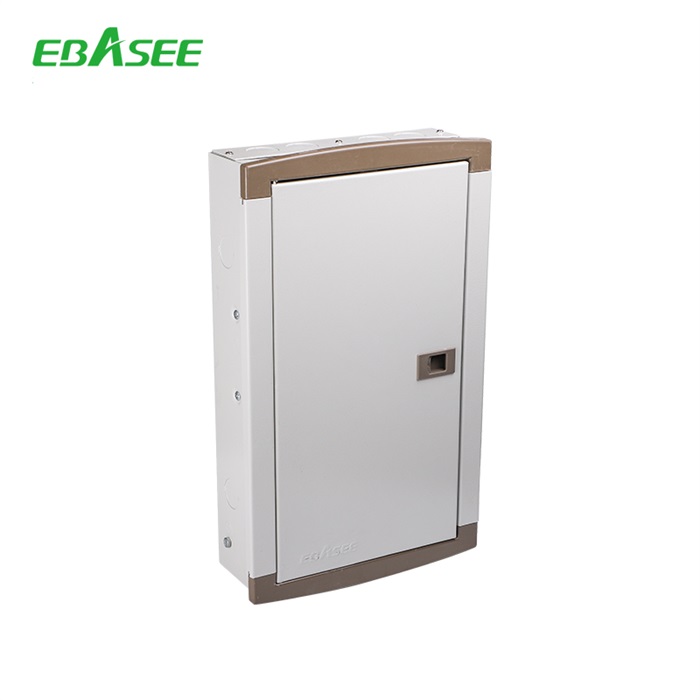

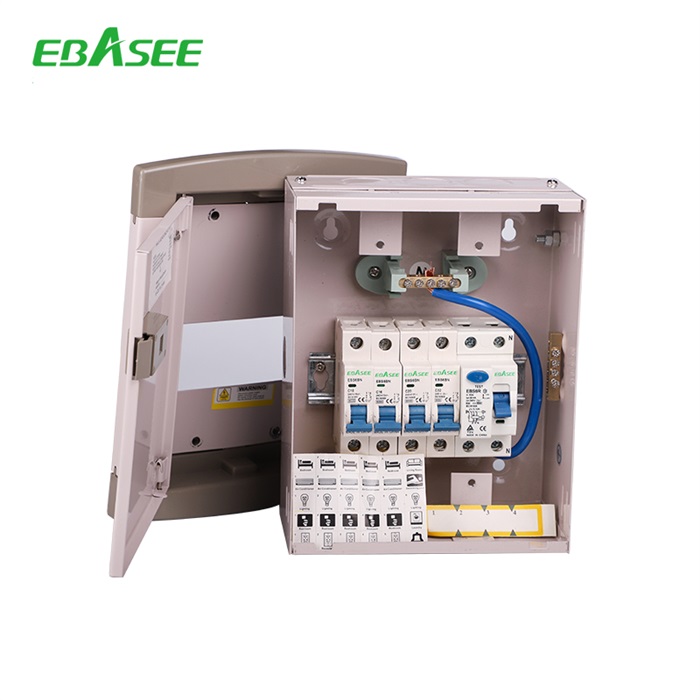

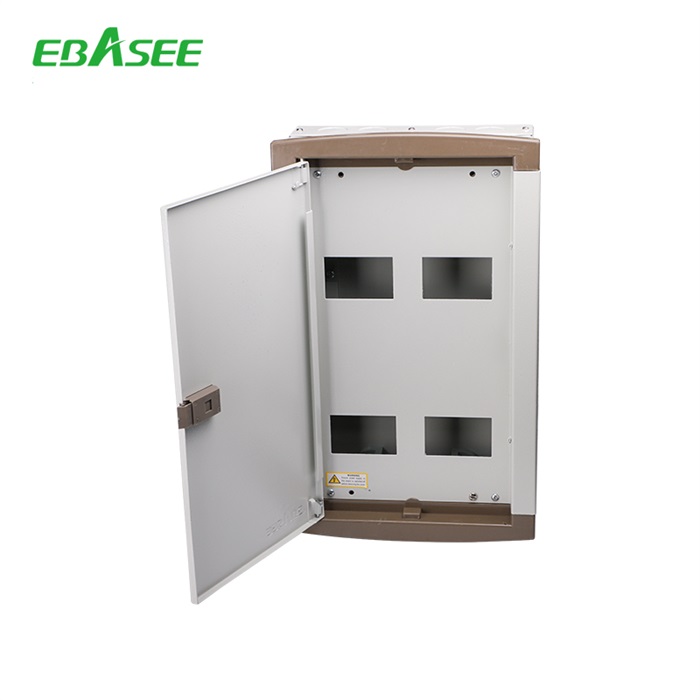

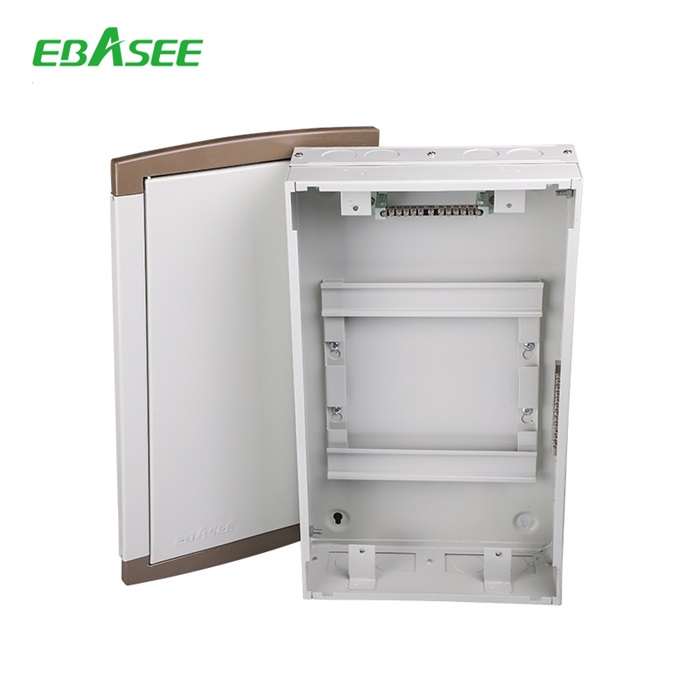

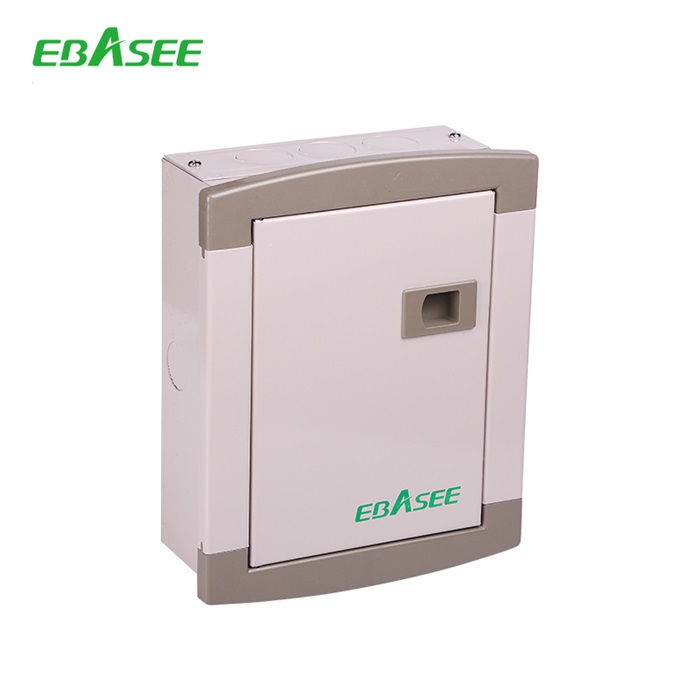

The EBST distribution boards are available with a fixed load or split load pan assembly. They have a fully flush fitted metal door with a “slam” type catch. All boards are delivered with both Neutral and Earth bars fitted and the neutral is designed to wrap around the incoming device to ensure that extra wiring space is available for the outgoing devices.The incoming device must be selected and fitted by the installer. The top and bottom gland plates are removable and also include knock-outs to suit standard size conduits. The pan assembly is fully shrouded and the busbars are one piece in design, this ensures that no “hot spots” can occur as there are no mechanical joints.
| EBST2 Series single phase | Model | No of ways | A(mm) | B(mm) | W(mm) | Top | Bottom | Side | Sheef
Thickness |
 |
EBST2-S4 | 4ways | 175 | 125 | 197 | 3 | 3 | 1 | 1 |
| EBST2-S6 | 6ways | 211 | 151 | 233 | 3 | 3 | 1 | 1 | |
| EBST2-S8 | 8ways | 247 | 187 | 269 | 5 | 5 | 1 | 1 | |
| EBST2-S12 | 12ways | 319 | 269 | 341 | 7 | 7 | 1 | 1 | |
| EBST2-S16 | 16ways | 391 | 341 | 413 | 9 | 9 | 1 | 1 |
| EBST2 Series three phase | Model | No. of ways | A(mm) | B(mm | W(mm) | Top | Bottom | Side | Cheef
T hickness |
 |
EBST2-T4 | 4ways | 254 | 196 | 269 | 4 | 341 | 2 | 1 |
| EBST2-T*4 | *4ways | 323 | 268 | 341 | 6 | 6 | 2 | 1 | |
| EBST2-T6 | 6ways | 323 | 268 | 341 | 6 | 6 | 2 | 1 | |
| EBST2-T8 | 8ways | 395 | 340 | 413 | 6 | 6 | 2 | 1 | |
| EBST2-T12 | 12ways | 534 | 479 | 552 | 8 | 8 | 2 | 1 |

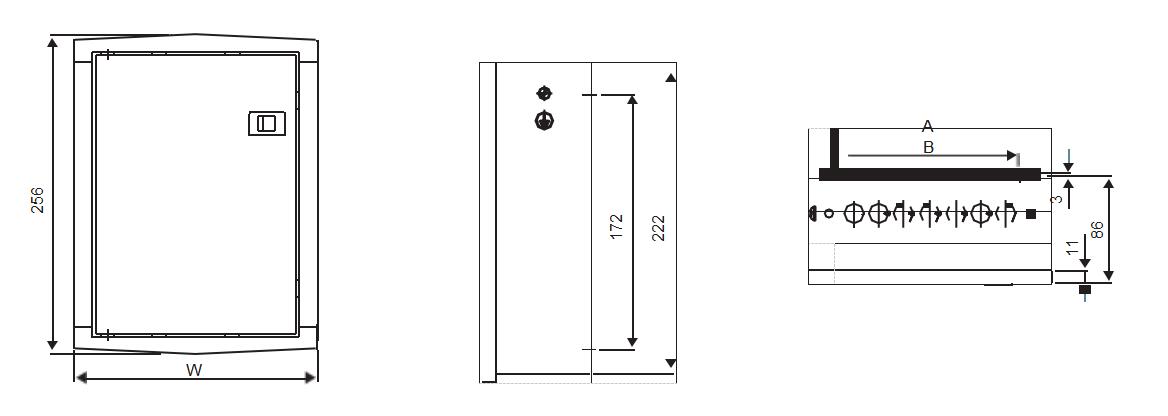

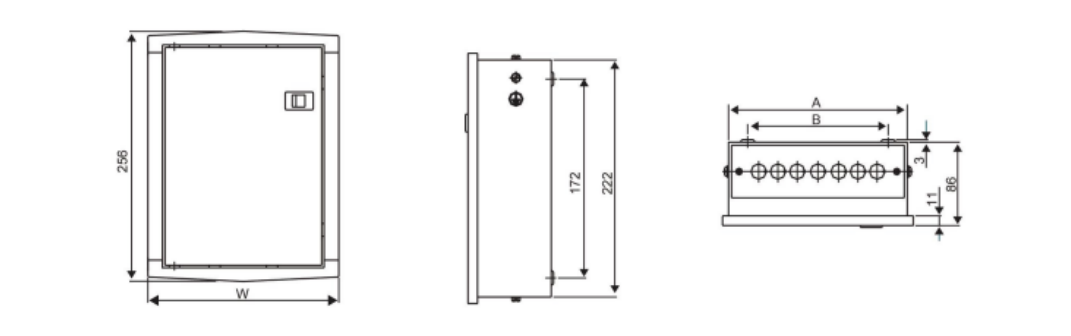

Single Phase

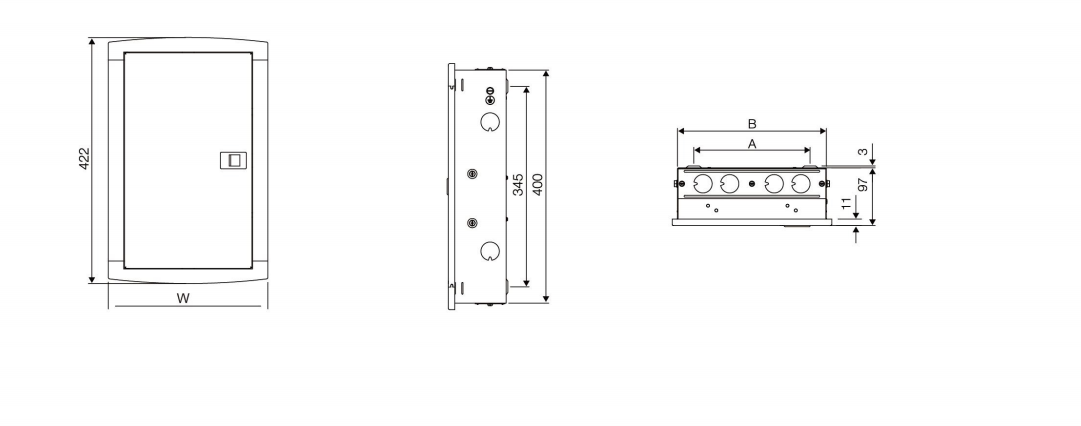

Three Phase
