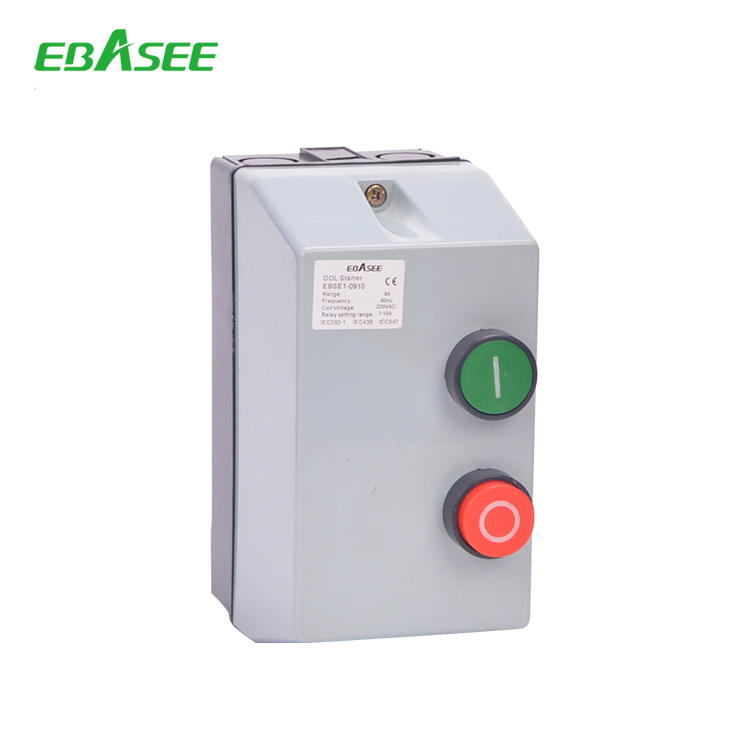

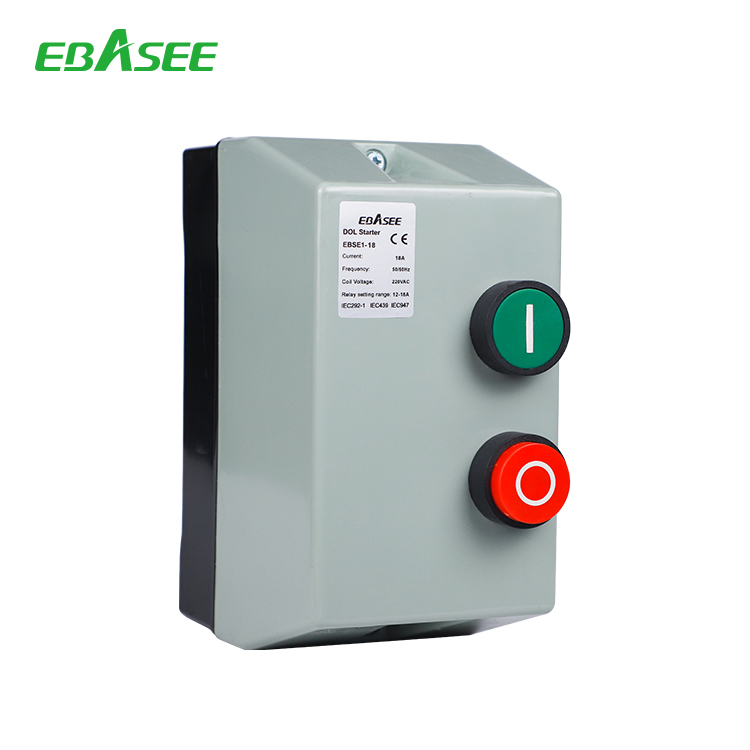

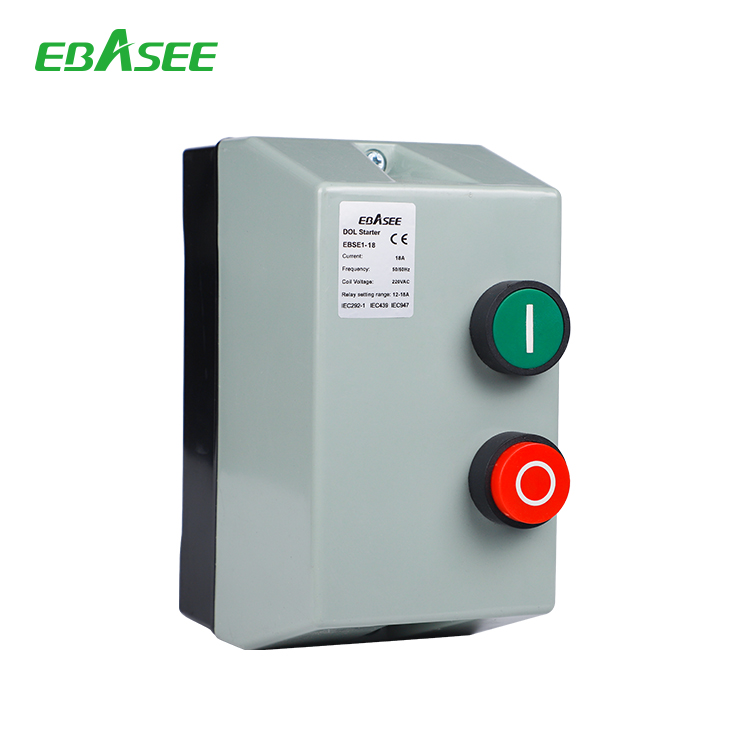

EBSE1 DOL starter mainly applies to circuit of AC 50 or 60Hz, voltage up to 550V for remote making and breaking circuit and frequently starting and controlling motor.It features small volume light weight, low power consumption, high efficiency, safe and reliable performance etc.
| Type | Standard | IEC60947-4-1, IEC60439-1 | |
|
Electrical features |

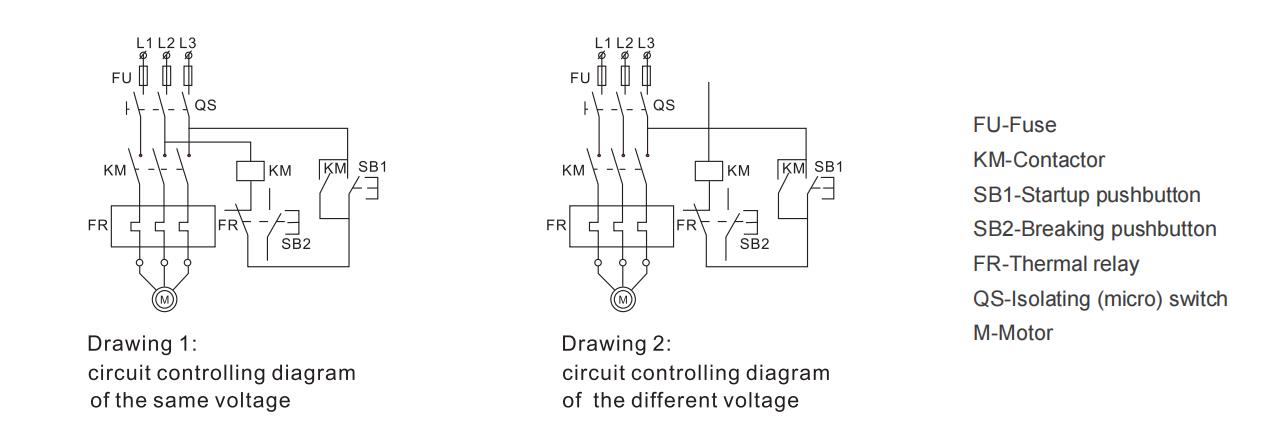

Rated current ln | A | 09, 12, 18, 25, 32, 40, 50, 65, 80, 95 |
| Rated insulating voltage | V | 690 | |
| Control | 1-green: start button “I” | ||
| (Two pushbuttons mounted on enclosure cover) | 2-red: stop/reset button “O” | ||
| Rated frequency | Hz | 50/60 | |
| Connections | Pre-wired power and control circuit connections | ||
| Protection degree | IP65 | ||
|

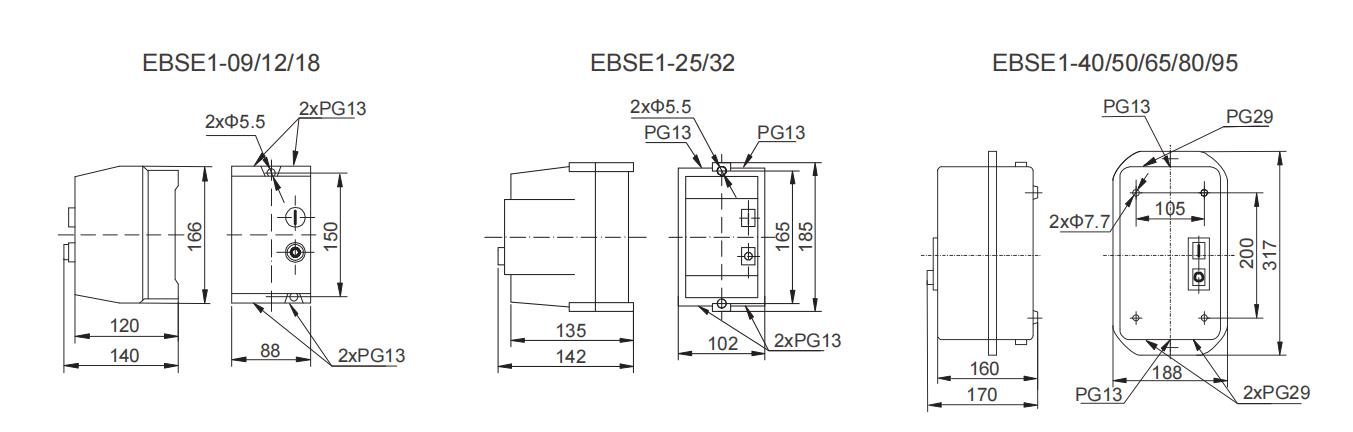

Mechanical features |
Material |
EBS1E-09~32 plastic
EBS1E-40~95 metal |
|
|
Working form (with daily average≤35℃) |
℃ |
8 hours uninterrupted duty
intermittent periodic duty: 600 time/hour without thermal relay at 40%t power access rate 15 times/hour with thermal relay |
|
| Mechanical life | 6×106 times | ||
| Electrical life | 6×105 times | ||
| Ambient air temperature | ℃ | – 5~+40 | |
| meter | 2000 | ||
| Pollution degree | 3 | ||
| Installation category | 3 |
| Standard pow er ratings of 3- phase motors 50- 60H z in category AC – 3 |
Rated current |
Conventional heating current Ith (A) | Matched thermal relay(1) |
Type code |
||
| 220V 230V
kW |
380V 400V
kW |
660V 690V
kW |
380V A | 230V 50HZ
Please contact us for other coil voltage. |
||
| 2.2 | 4 | 5.5 | 9 | 20 | 1TR-25 | E1 09P5 |
| 3 | 5.5 | 7.5 | 12 | 20 | 1TR-25 | E1 12P5 |
| 4 | 7.5 | 9 | 18 | 32 | 1TR-25 | E1 18P5 |
| 5.5 | 11 | 15 | 25 | 40 | 1TR-25 | E1 25P5 |
| 7.5 | 15 | 18.5 | 32 | 50 | 1TR-36 | E1 32P5 |
| 11 | 18.5 | 30 | 40 | 60 | 1TR-93 | E1 40P5 |
| 15 | 22 | 33 | 45 | 80 | 1TR-93 | E1 50P5 |
| 18.5 | 30 | 37 | 65 | 80 | 1TR-93 | E1 65P5 |
| 22 | 37 | 45 | 85 | 110 | 1TR-93 | E1 85P5 |
| 25 | 45 | 45 | 95 | 125 | 1TR-93 | E1 95P5 |
