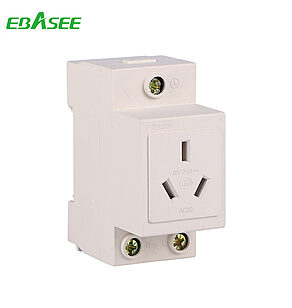

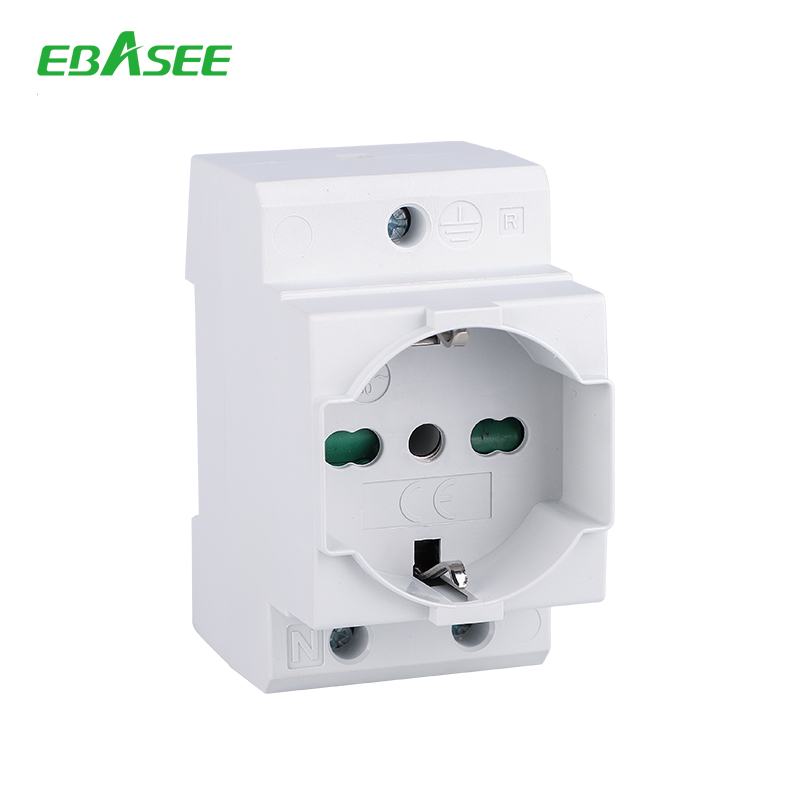

EBASEE has a very wide range of modular sockets, which includes 38 models conforming to 5 national standards – Italian, French, German, English, Swiss – suitable for use in around 180 countries. The modular sockets have local quality approvals, attesting their conformity with applicable regulations.
Modular socket applies to circuit of AC 50/60 Hz,voltage 230/400V,current up to 25A.It is mainly used for family, office, farm, distribution box, lighting box, light industry etc, also available for non-specialists using.Life is longer than others with phosphor copper and flame retardant plastics material. It conforms to IEC 60884-1；GB 1002；GB2009.1 stardand.
| Standard | EBSA4 | |
| Rated current In | 10, 16, 25A | |

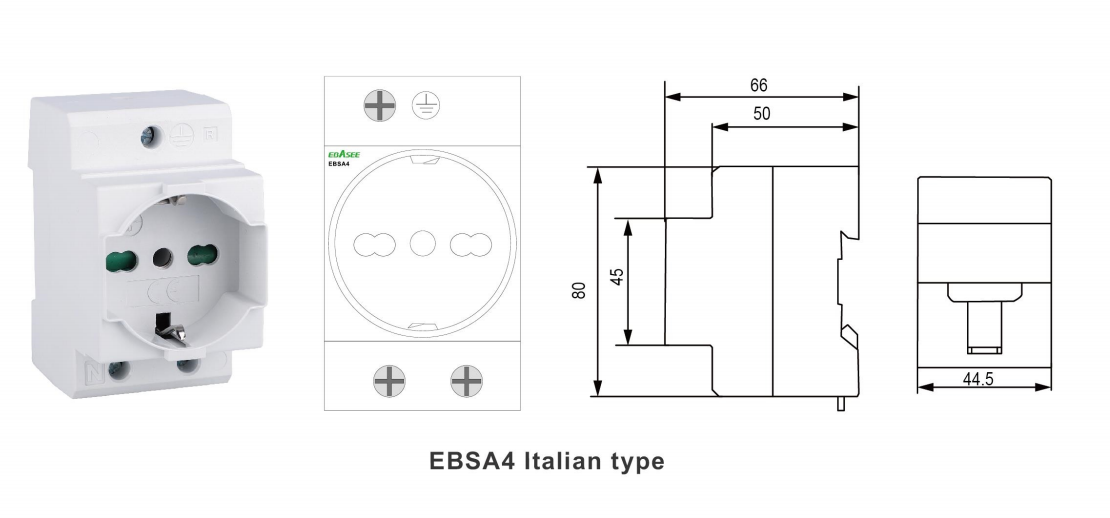

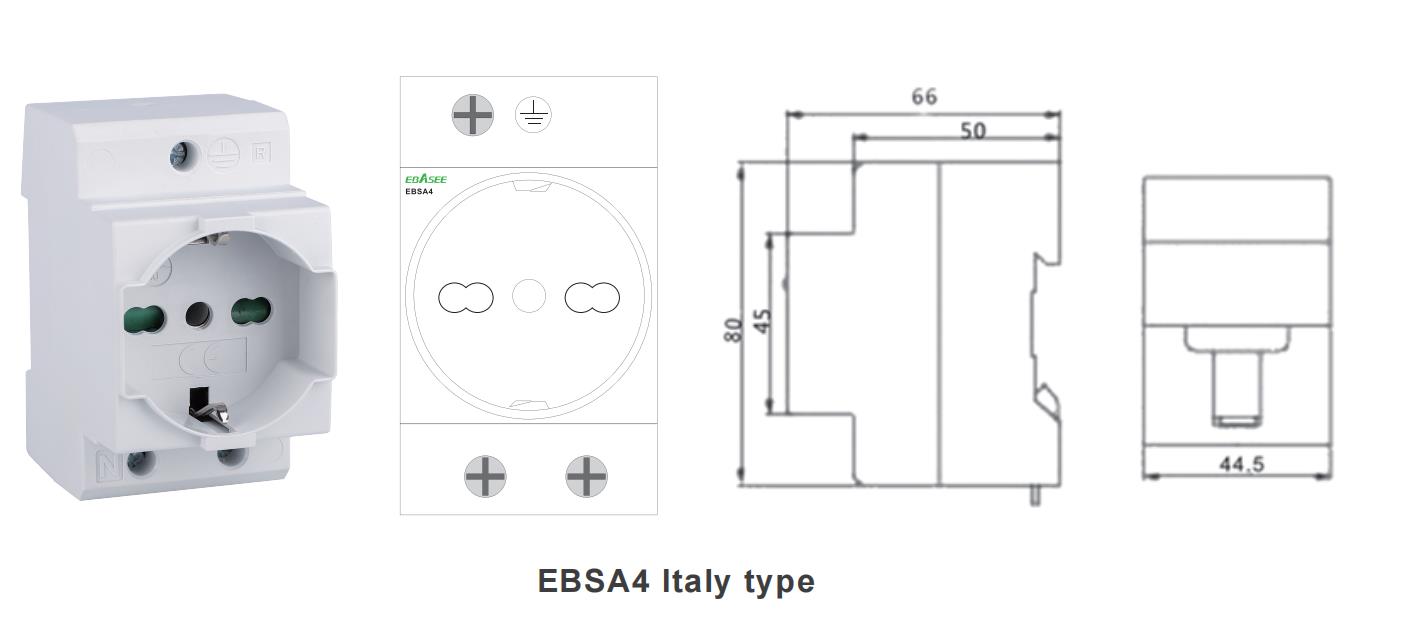

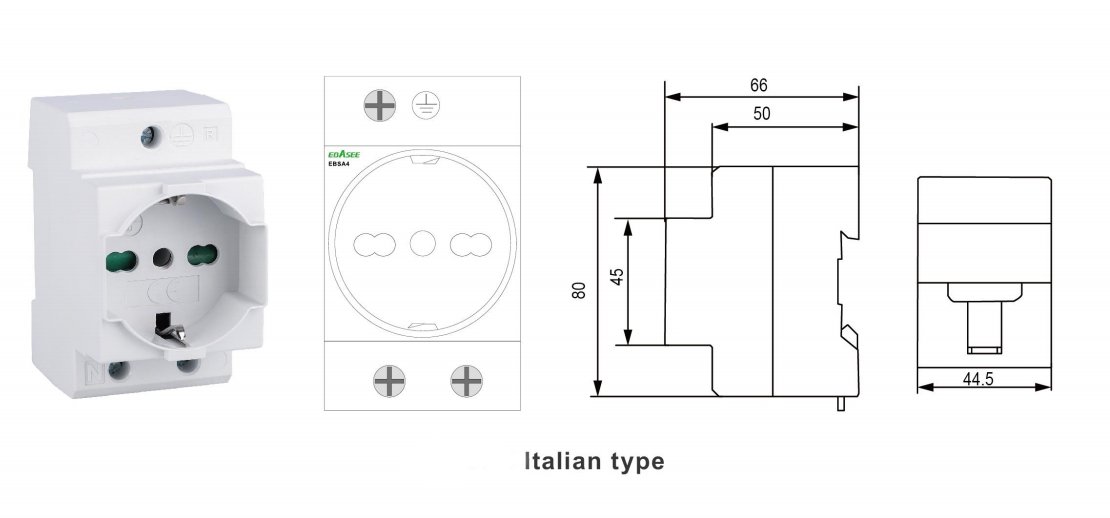

| Width(mm) | mm | 45 |
| Connection capacity | mm² | ≤4mm² |
| Frequency | Hz | 50/60Hz |
| Electrical life | times | 5000 |
| Rated Insulation voltage Ui | V | 5000V |
| Protection grade | IP20 | |
| Standard mounting | mm | 35mm DIN rail |
| Ambient temperature | ℃ | -5℃ to +40℃ |
