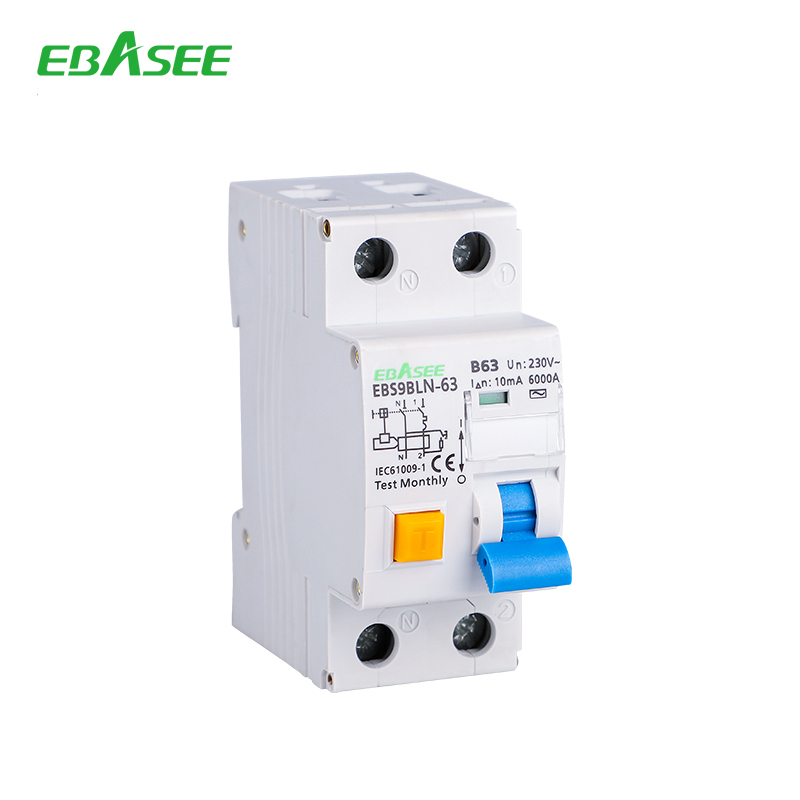

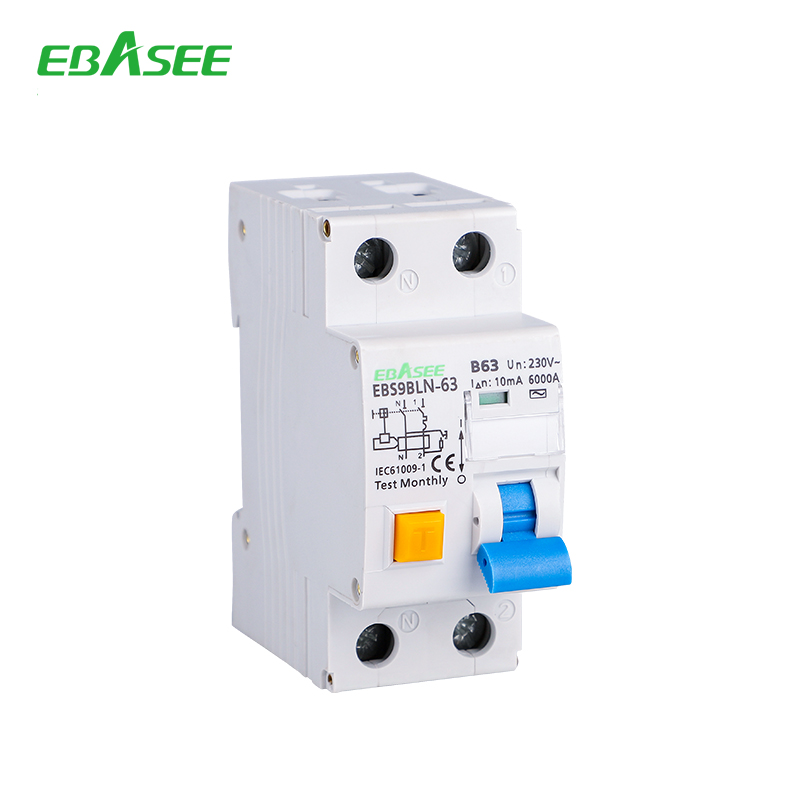

Suitable for industrial, commercial, high-rise and civil residences circuit protection.
•Overload& short circuit protection
•Protect people against indirect contacts and additional protection against direct contacts.
•Protect installations against fire hazard due to insulation faults.
•Control electric circuits
| Type | Standard | IEC/EN 61009-1 | |
|
Electrical features |
Poles | P | 1P+N |
| Type(wave form of the earth leakage sensed) | A, AC, S | ||
| Thermo-magnetic release characteristic | B, C | ||
| Rated current In | A | 6, 10, 16, 20, 25, 32, 40, 50, 63 | |
| Rated voltage Ue | V | 230/400 | |
| Rated sensitivity lΔn | A | 0.03, 0.1, 0.3 | |
| Rated residual making and breaking capacity lΔm | A | 500(In≤40A) 630(In＞40A) | |
| Rated short-circuit capacity lcn | A | 4500, 6000 | |
| Break time under lΔn | s | ≤0.1 | |
| Rated frequency | Hz | 50/60 | |
| Rated impulse withstand voltage(1.2/50)Uimp | V | 4000 | |
| Dielectric test voltage at ind.Freq.for 1min | kV | 2 | |
| Insulation voltage Ui | V | 250 | |
| Pollution degree | 2 | ||
|
Mechanical features |
Electrical life | t | 4000 |
| Mechanical life | t | 10000 | |
| Contact position indicator | Yes | ||
| Protection degree | IP20 | ||
| Ambient temperature(with daily average≤35℃) | ℃ | -5~+40 | |
| Storage temperature | ℃ | -25~+70 | |
|

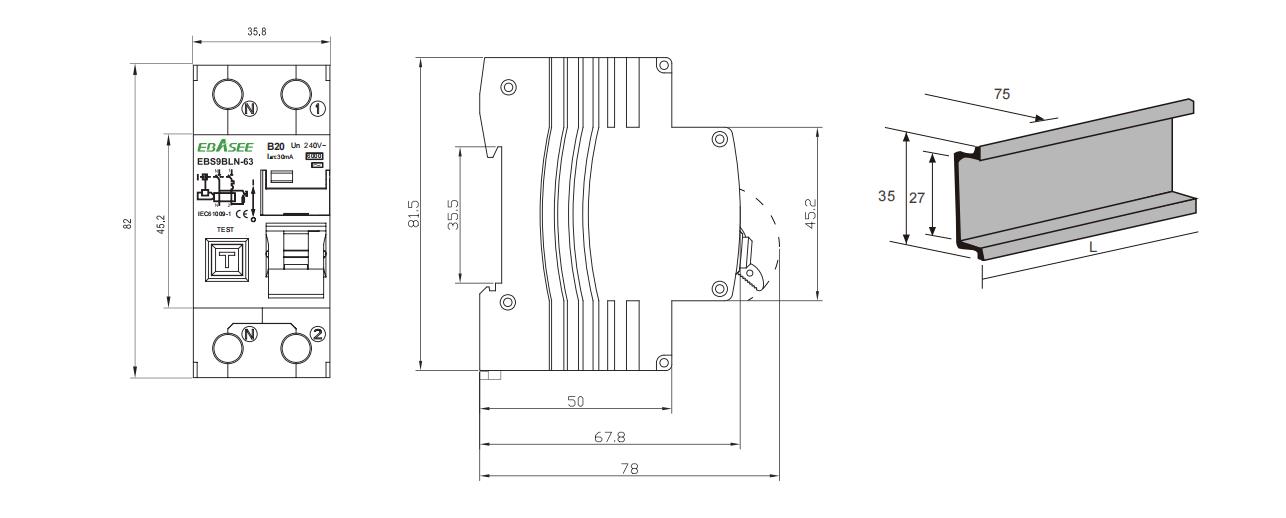

Installation |
Terminal connection type | Cable/Pin-type busbar | |
|
Terminal size top/bottom for cable |
mm² | 25 | |
| AWG | 18-3 | ||
|
Terminal size top/bottom for busbar |
mm² | 25 | |
| AWG | 18-3 | ||
|
Tightening torque |
N*m | 2 | |
| In-Ibs | 18 | ||
| Mounting | On DIN rail EN60715(35mm)by means of fast clip device | ||
| Connection | From top |
