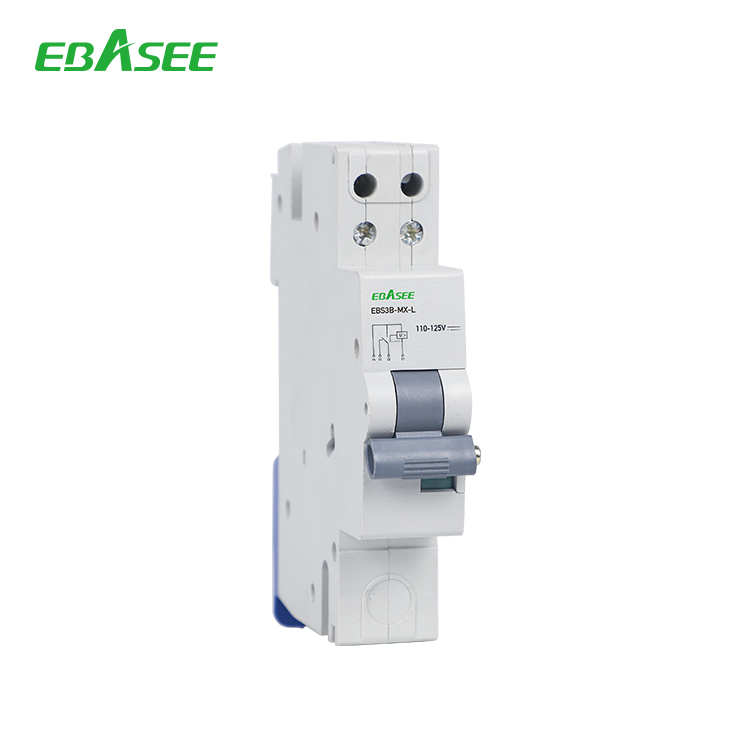

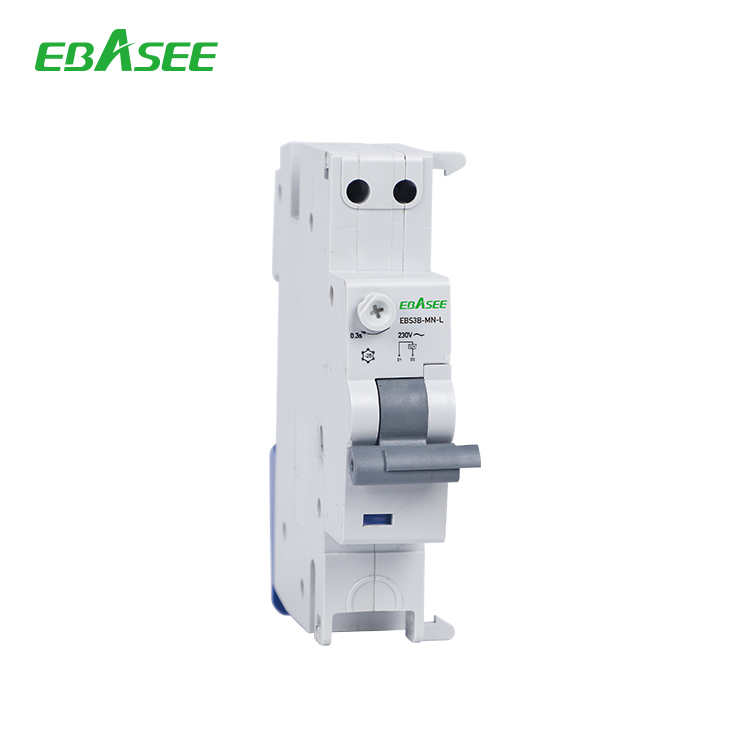

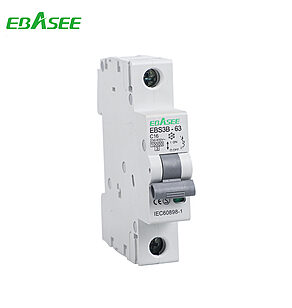

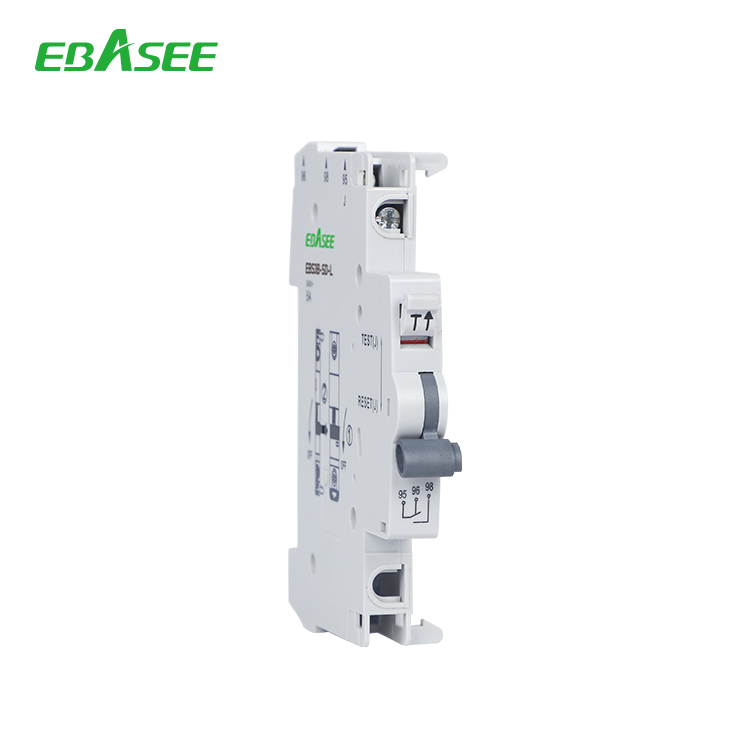

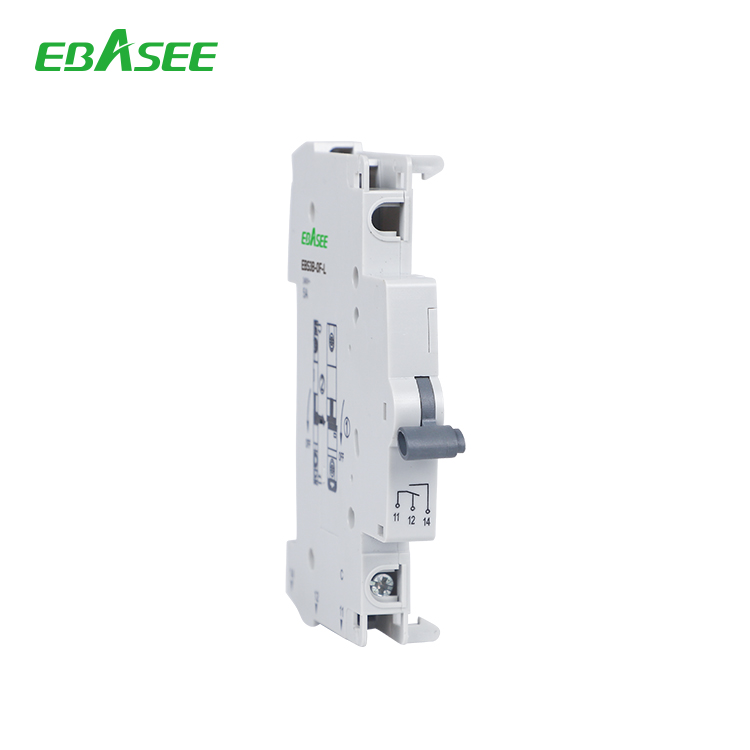

EBS3B-OF Auxiliary contact: indication of the position of MCB EBS3B-SD Auxiliary alarm: signaling of status making or breaking of MCB through Alarm EBS3B-OF+AD Auxiliary contact & alarm: combination of auxilary contact and alarm EBS3B-MN Under voltage release: protection ofthe load in the event of a voltage drop (between 70% and 35% of its rated value) EBS3B-MX Shunt release: remote opening ofthe device when a voltage is applied Suitable for MCB Series:EBS3B
Products comply with IEC/EN60898-1.
| Type | Standard | lEC/EN 60947-2 | |
| Electrical features | Rated insulation voltage Vi | VAC | 500 |
| Rated frequency | Hz | 50/60 | |
| Utilization category | AC14,DC13 | ||
|
Mechanical features |
Mechanical life | t | 10000 |
| Protection grade | IP20 | ||
| Reference temperature for setting of thermal element | °C | 30 | |
| Ambient temperature (Max 95% humidity) | °C | -5~+40 | |
| Storage temperature | °C | -40~+75 | |
|
Installation |
Terminal connection type | Cable/Pin-type busbar/U-type bar | |
| Terminal size top / bottom for cable | mm² | 2.5 | |
| Mounting | On DIN rail EN 60715(35mm)by means of fast clip device |
