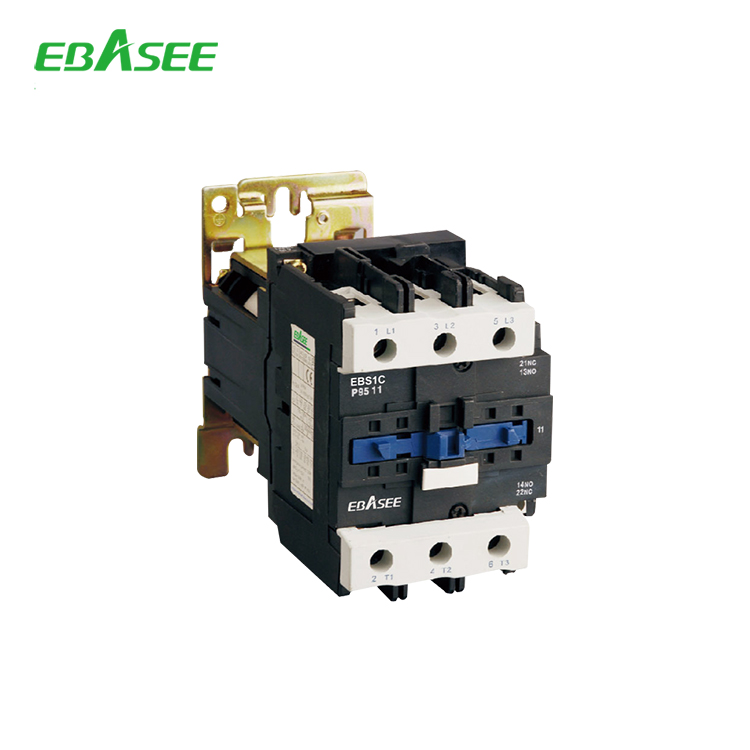

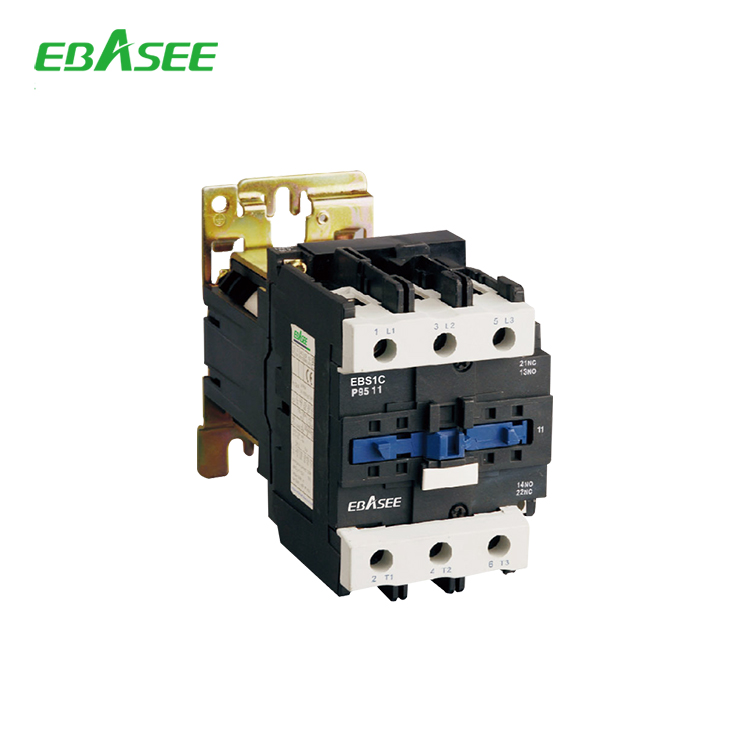

EBS1C-P Series DC operated AC contactor is suitable for the circuit up to rated voltage 660V AC 50Hz/60Hz,and rated current 9-95A in AC-3/380V load circuits,for remote control of circuit making,breaking and frequent starting AC motors. It can also be combined with the auxiliary contact block,air delayer,thermal relay devices etc.
| Type | Rated
working current(A) leA(AC-3) |
Rated heat
current lth(A) |
Rated working
voltage Ue A |
Rated
insulating voltage Ui A |
Controlled Power(kW) | Electrical life
(AC-3) 104 |
Contacts
Number |
||||
| 220V | 380V | 415V | 440V | 660V | |||||||
| EBS1C-P09 | 9 | 20 | 380/660V | 660V | 2.2 | 4 | 4 | 4 | 5.5 | 100 |
3P+NO, 3P+NC 3P+NO+NC |
| EBS1C-P12 | 12 | 20 | 380/660V | 660V | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 100 | |
| EBS1C-P18 | 18 | 32 | 380/660V | 660V | 4 | 7.5 | 9 | 9 | 9 | 100 | |
| EBS1C-P25 | 25 | 40 | 380/660V | 660V | 5.5 | 11 | 11 | 11 | 15 | 100 | |
| EBS1C-P32 | 32 | 50 | 380/660V | 660V | 7.5 | 15 | 15 | 15 | 18.5 | 80 | |
| EBS1C-P40 | 40 | 60 | 380/660V | 660V | 11 | 18.5 | 22 | 22 | 30 | 80 | |
| EBS1C-P50 | 50 | 80 | 380/660V | 660V | 15 | 22 | 25 | 30 | 33 | 60 | |
| EBS1C-P65 | 65 | 80 | 380/660V | 660V | 18.5 | 30 | 37 | 37 | 37 | 60 | |
| EBS1C-P80 | 80 | 125 | 380/660V | 660V | 22 | 37 | 45 | 45 | 45 | 60 | |
| EBS1C-P95 | 95 | 125 | 380/660V | 660V | 25 | 45 | 45 | 45 | 45 | 60 | |
| Type Code | ||||||||
| Rated operating current
380V AC- 3 |
Conventional thermal current |
Standard power ratings of 3 phase motors 50- 60Hz AC- 3 | Auxiliary contact |
230V 50Hz Please contact us for other coil voltage . |
||||
| 220V
230V |
380V 400V | 660V
690V |
||||||
| A | A | KW | KW | KW | ||||
| 9 | 20 | 2.2 | 4 | 5.5 | 1
– |
–
1 |
1C-P0910BD
1C-P0901BD |
|
| 12 | 20 | 3 | 5.5 | 7.5 | 1 | – | 1C-P1210BD | |
| 18 | 32 | 4 | 7.5 | 9 | – | 1 | 1C-P1201BD | |
|
25 |
40 |
5.5 |
11 |
15 |
1
– |
–
1 |
1C-P1810BD
1C-P1801BD |
|
| 32 | 50 | 7.5 | 15 | 18.5 | 1
– |
–
1 |
1C-P2510BD
1C-P2501BD |
|
| 40 | 60 | 11 | 18.5 | 30 | 1 | – | 1C-P3210BD | |
| 50 | 80 | 15 | 22 | 33 | – | 1 | 1C-P3201BD | |
|
65 |
80 |
18.5 |
30 |
37 |
1
1 |
1
1 |
1C-P4011BD
1C-P5011BD |
|
| 80 | 125 | 22 | 37 | 45 | 1
1 |
1
1 |
1C-P6511BD
1C-P8011BD |
|
| 95 | 125 | 25 | 45 | 45 | 1 | 1 | 1C-P9511BD | |
