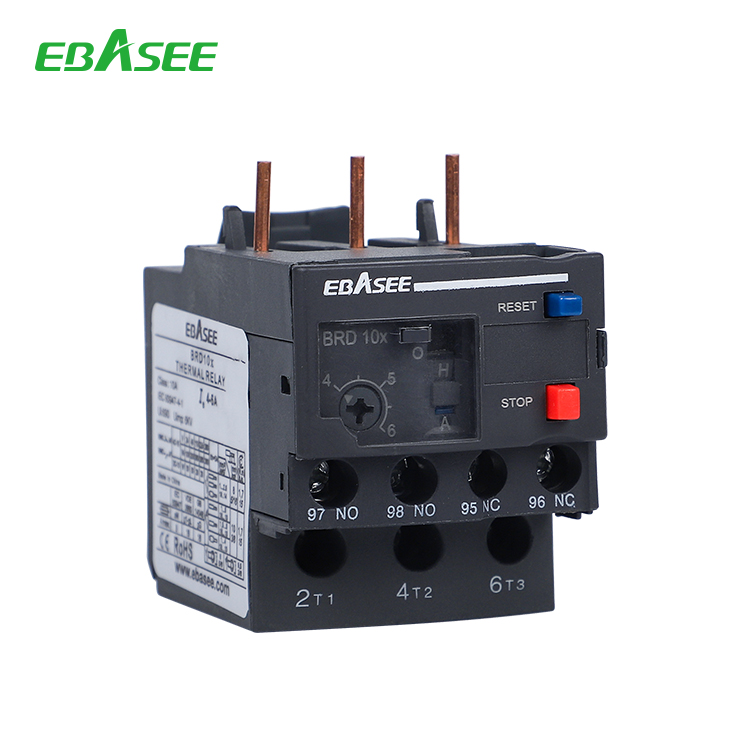

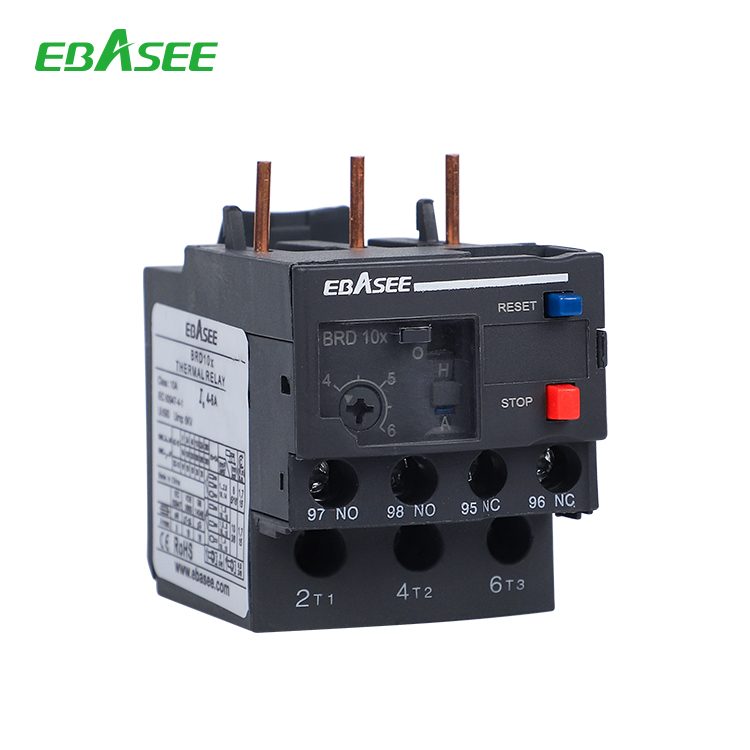

BRDx thermal overload relays are designed for use with contactors BC1Dx. BRDx Series overload relays apply to circuit of AC 50Hz or 60Hz, rated voltage to below 660V and rated current 0.1A~95A for AC motor overload and single phase protection during long time or intermittent long time service,which can also protect three-phase serious imbalance and long starting time of motor or long time operation. It can also be used for corresponding AC contactor for electromagnetic starter.
| Type code | Setting range | For use with
contactor BC1Dx |
code |
| BRDx01 | 0.1~0.16 | D09~D38 | 5205010 |
| BRDx02 | 0.16~0.25 | D09~D38 | 5205020 |
| BRDx03 | 0.25~0.40 | D09~D38 | 5205040 |
| BRDx04 | 0.40~0.63 | D09~D38 | 5205060 |
| BRDx05 | 0.63~1 | D09~D38 | 5205080 |
| BRDx06 | 1~1.6 | D09~D38 | 5205100 |
| BRDx07 | 4.6~2.5 | D09~D38 | 5205130 |
| BRDx08 | 2.5~4 | D09~D38 | 5205160 |
| BRDx10 | 4~6 | D09~D38 | 5205180 |
| BRDx12 | 5.5~8 | D09~D38 | 5205190 |
| BRDx14 | 7~10 | D09~D38 | 5205200 |
| BRDx16 | 9~13 | D12~D38 | 5205220 |
| BRDx21 | 12~18 | D18~D38 | 5205230 |
| BRDx22 | 16~24 | D25~D38 | 5205240 |
| BRDx32 | 23~32 | D25~D38 | 5205260 |
| BRDx35 | 30~38 | D32~D38 | 5205290 |
